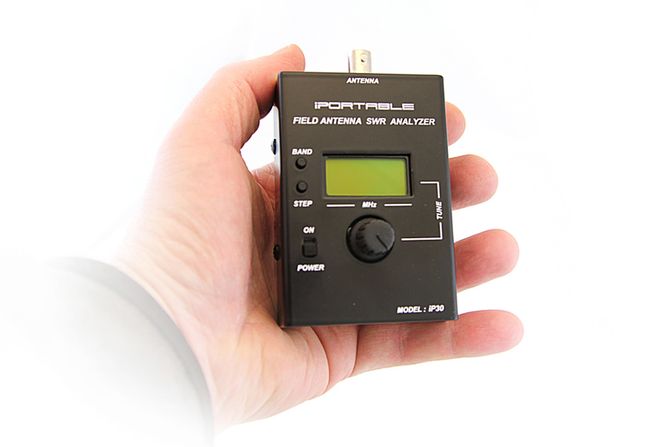

The iP30z iPortable™ Antenna SWR Analyzer is designed for field use and is an excellent choice for working with the Buddipole line of antennas. This compact battery powered unit has an easy to read frequency display and measures SWR as well as Z (impedance) in the HF Band. The SWR readings quickly show you the actual VSWR measurement. This is the easiest way to adjust your antenna quickly in the field without any guesswork.

The newest model - the iP60z - adds 6m capability. Otherwise the 2 models are identical in size and build. The iP60z is available from the drop-down box.
Frequency Coverage 400kHz - 35Mhz (continuous) (400kHz - 60Mhz for the iP60z)
Band Switch: Quickly change Bands 160M,80M,60M,40M,30M,20M 17M,15M,12M,10M (and 6m for the iP60z)
Source Impedance: 50-Ohms
RF Output Level : 1.7Vpp (typical)
Direct Digital Synthesis (DDS) Technology
10-Bit A/D converter
SWR Range : 1.0~9.9
Impedance Range: 10~500ohm
Weight: 7oz
Compact size: 3.5”(H) x 2.5”(W) x 1.25”(D) (w/o knob, connector)
Battery : 9V Alkaline Battery
External Power : DC 7-14V
Power Consumption : < 120mA
Sleep mode draw : 4 mA Unit goes to sleep after 30 sec. Battery mode only.
NOTE: Unit will NOT go into sleep mode using external power.

CONNECTORS: · External Power Connector: 2.1mm center positive · Antenna Connector: BNC

CONTROLS: · Tuning Knob : Changes Frequency
· Band Switch: Quickly changes Bands
· Step Size Switch: 10Hz, 100 Hz, 1kHz, 10kHz and 100kHz
·Sleep time adjust
· Power Switch: “unit ON”
